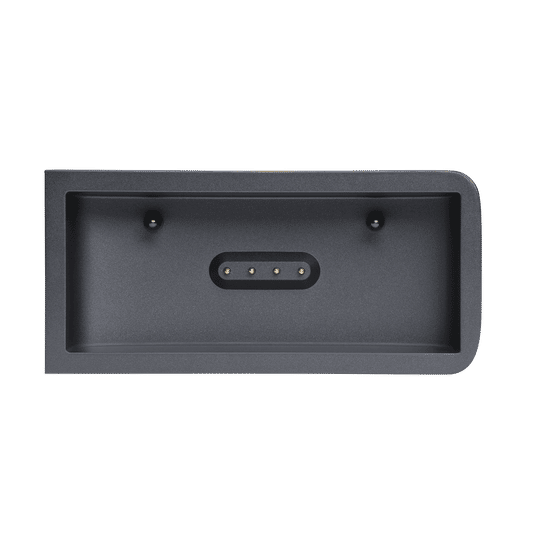

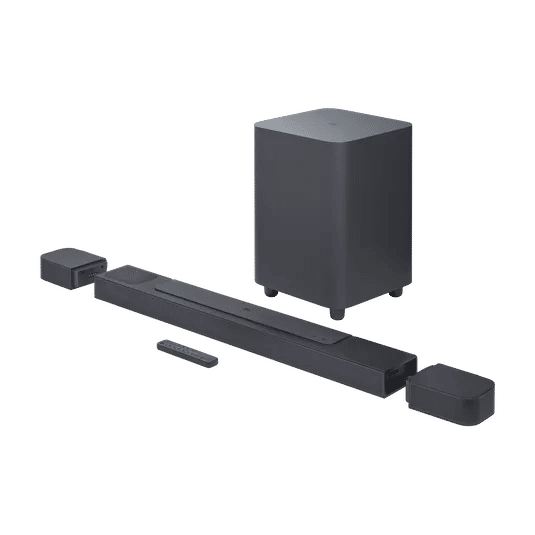

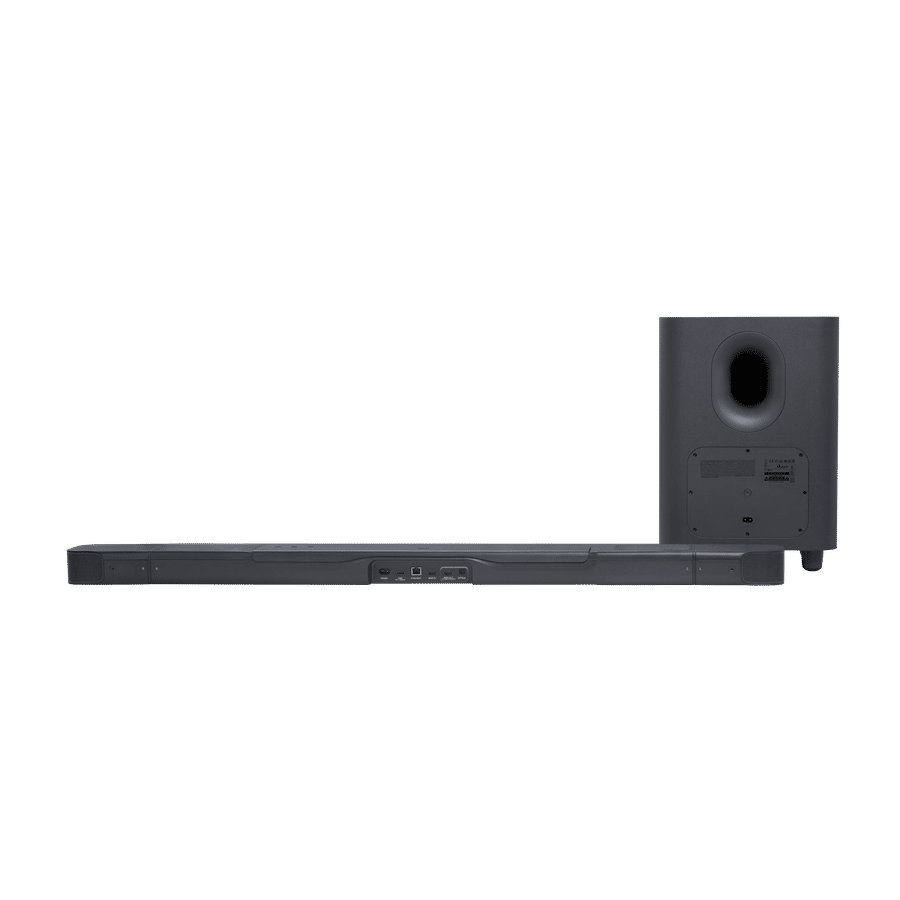

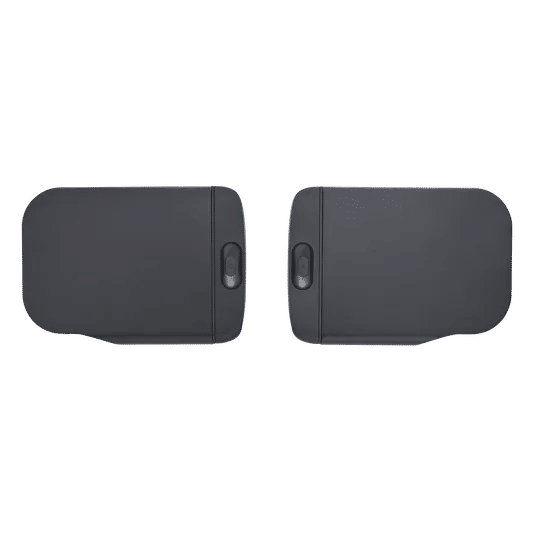

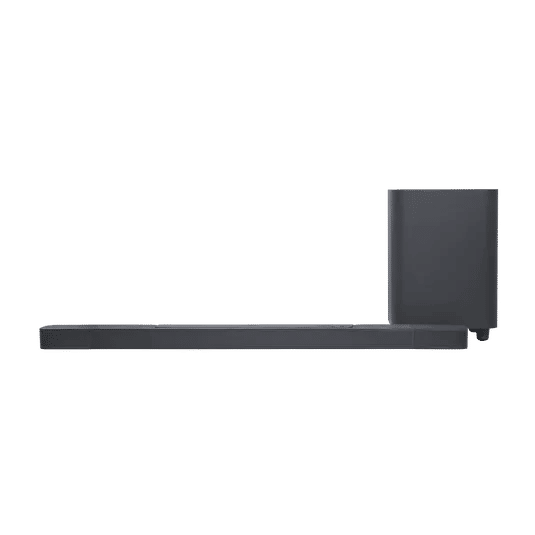

The JBL Bar 800 with Dolby Atmos® includes two up-firing drivers, a 10” subwoofer, and detachable surround speakers to create an immersive 3D cinema experience.

General Specifications

Power supply: 100 – 240V AC, ~ 50/60Hz
Networked standby power:
Operating temperature: 0°C – 45°C

Audio Specifications

Total speaker power output (Max @THD 1%): 720W
Soundbar output power (Max @THD 1%): 340W
Surround speaker output power (Max @THD 1%): 2x 40W
Subwoofer output power (Max. @THD 1%): 300 W
Soundbar transducer: 3x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers
Surround speaker transducer: 1x (46×90)mm racetrack driver
Subwoofer transducer: 10” (260mm)
Frequency response: 35Hz – 20kHz (-6dB)
Audio inputs: 1 Optical, Bluetooth, Chromecast Built-in, AirPlay and Alexa MRM, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Battery

Lithium battery 3.635V, 3283mAh

Video Specifications

HDMI video input: 1
HDMI video output (with Enhanced Audio Return Channel, eARC): 1
HDMI HDCP version: 2.3
HDR pass through: HDR10, Dolby Vision
